EnoSense® Wall+Desk
This small EnOcean sensor is powered by its integrated solar cell and transmits its measurement data at configurable intervals.
Technical data
| Order Number | 12286 |
| Item Number | AL-431-00-868 |
| Device Profile (EEP) | A5-14-05, D2-14-41, D2-14-40, A5-02-05, A5-04-01, A5-04-03, A5-06-02, A5-06-03, D5-00-01 |
| Measurement Range | Vibration / Acceleration: ± 2 g |
| Power Supply | Solar cell / CR1632 backup battery (optional, not included) / CR1632 backup battery (not included), only when the configuration service is ordered |
| Certifications | CE, FCC, CRC, ARIB, NCC, KC, IMDA, CCC |
| Origin | Developed and manufactured in Germany |
| Wireless Interface | EnOcean EU: 868.3 MHz FCC: 902 MHz ARIB: 928 MHz NCC/KC: 921 MHz |
| Additional Interfaces | service button NFC for configuration NFC for configuration and parameterization |
| Sensors | Vibration and Acceleration Relative Humidity Temperature Light Intensity |
| Environmental Conditions | Operating temperature: +5 °C to +40 °C Storage temperature: -20 °C to +70 °C Humidity: 0 to 95% Protection class: IP20 |
| Dimensions and Weight | 50 x 50 x 16 mm , 29 g |
Description

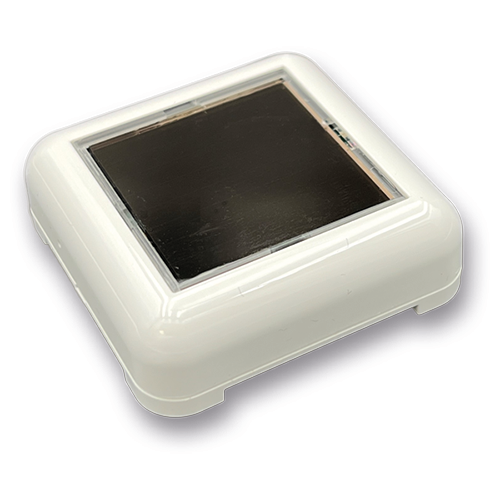

This small EnOcean sensor is powered by its integrated solar cell and transmits its measured values at configurable intervals.
The sensor, which snaps into a housing, is attached—preferably to the tabletop in a corner of the workspace—using a double-sided adhesive pad. Depending on the color of the table, the sensor is available in black, white, or beige housings. Data is transmitted via the EnOcean wireless standard. Both the sensitivity and the transmission frequency of the telegrams can be configured via NFC.
The vibration sensor is available for use as a pure presence detection solution. In addition, sensors for temperature, humidity, and brightness are integrated for further analysis or integration into building automation systems.
Thanks to its sensitive vibration detection, the EnoSense® Wall + Desk provides reliable detection of workstation occupancy for many applications.
Other interesting wireless sensors for detecting occupied workstations:
Variants and Part Numbers
16 models| Order No. | Item Number | Radio Frequency | Model | Approval | Market | Bookmark |
|---|---|---|---|---|---|---|
| 12286 | AL-431-00-868 | 868.3 MHz | — | CE | Europe | |
| 12471 | AL-431-00-868 | 868.3 MHz | black | CE | Europe | |
| 12470 | AL-431-00-868 | 868.3 MHz | white | CE | Europe | |
| 12393 | AL-431-00-902 | 902 MHz | — | FCC | USA and Canada | |
| 12473 | AL-431-00-902 | 902 MHz | black | FCC | USA and Canada | |
| 12472 | AL-431-00-902 | 902 MHz | white | FCC | USA and Canada | |
| 12603 | AL-431-00-928 | 928 MHz | — | ARIB | Japan | |
| 12636 | AL-431-00-928 | 928 MHz | white | ARIB | Japan | |
| 12635 | AL-431-00-928 | 928 MHz | black | ARIB | Japan | |
| 12598 | AL-431-00-928 | 902 MHz | — | CRC | Colombia | |
| 12643 | AL-431-00-928 | 902 MHz | black | CRC | Colombia | |
| 12762 | AL-431-00-928 | 902 MHz | white | CRC | Colombia | |
| 12523 | AL-431-00-921 | 921 MHz | white | KC | South Korea | |
| 12515 | AL-431-00-921 | 921 MHz | white | NCC | Taiwan | |
| 12524 | AL-431-00-868 | 868.3 MHz | white | CCC | China | |
| 12790 | AL-431-00-868 | 868.3 MHz | white | IMDA | Singapore |
CE/RED applies to all devices. Additional radio approvals depend on the model: Please select the part number for your target market. Other frequencies are available upon request.
Documents
Everything you need to know about EnoSense® Wall+Desk for bidding and planning, no registration required.
Related items from the planning phase
3 postsSimilar Products
Same function, different design or power supply

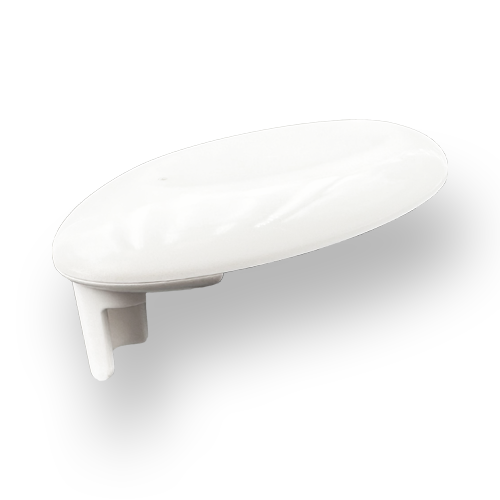

Workstation OccupancyEnoSense® DeskCompared to the EnoSense® WALL & DESK, our new sensor features a vibration sensor as well as …
