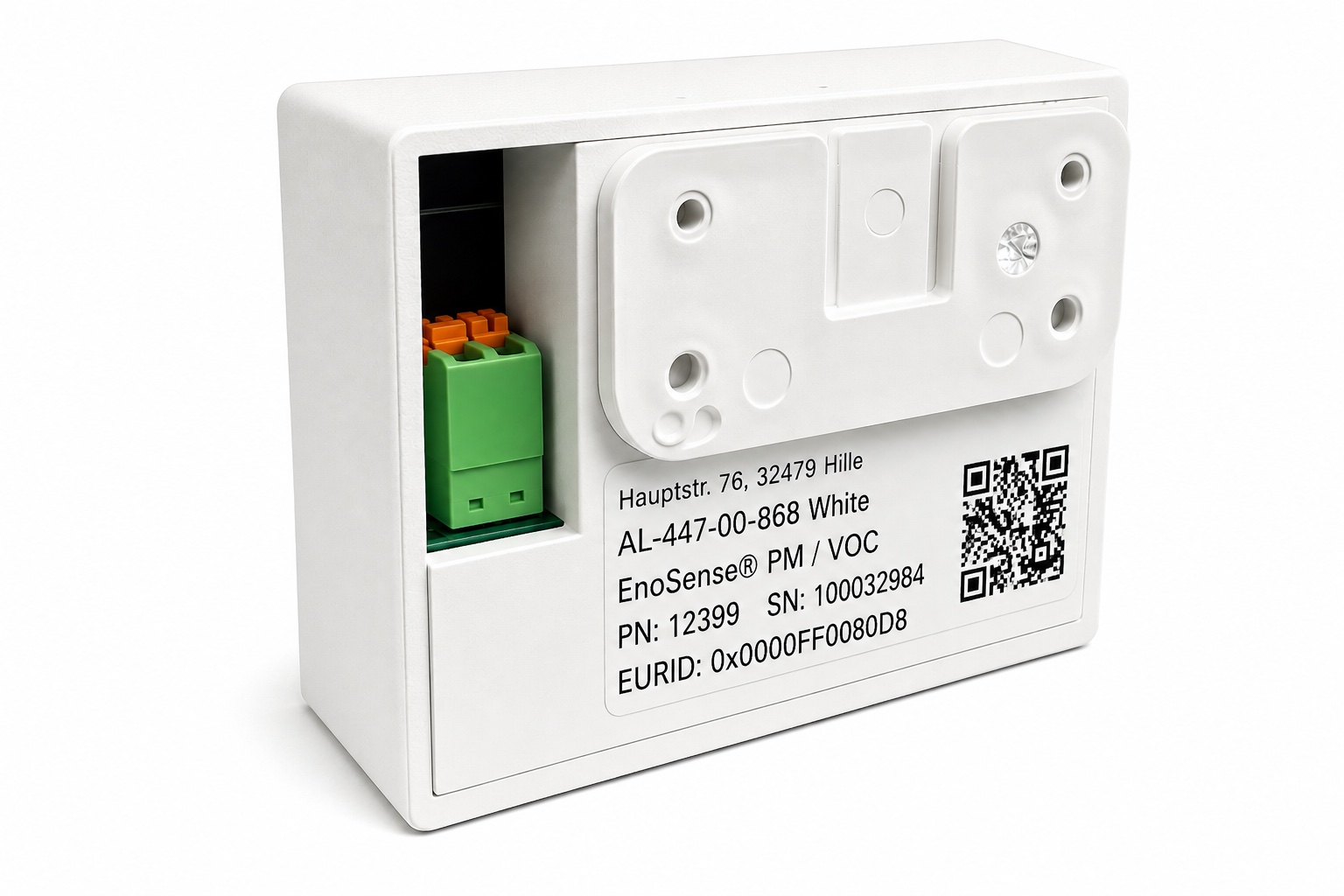

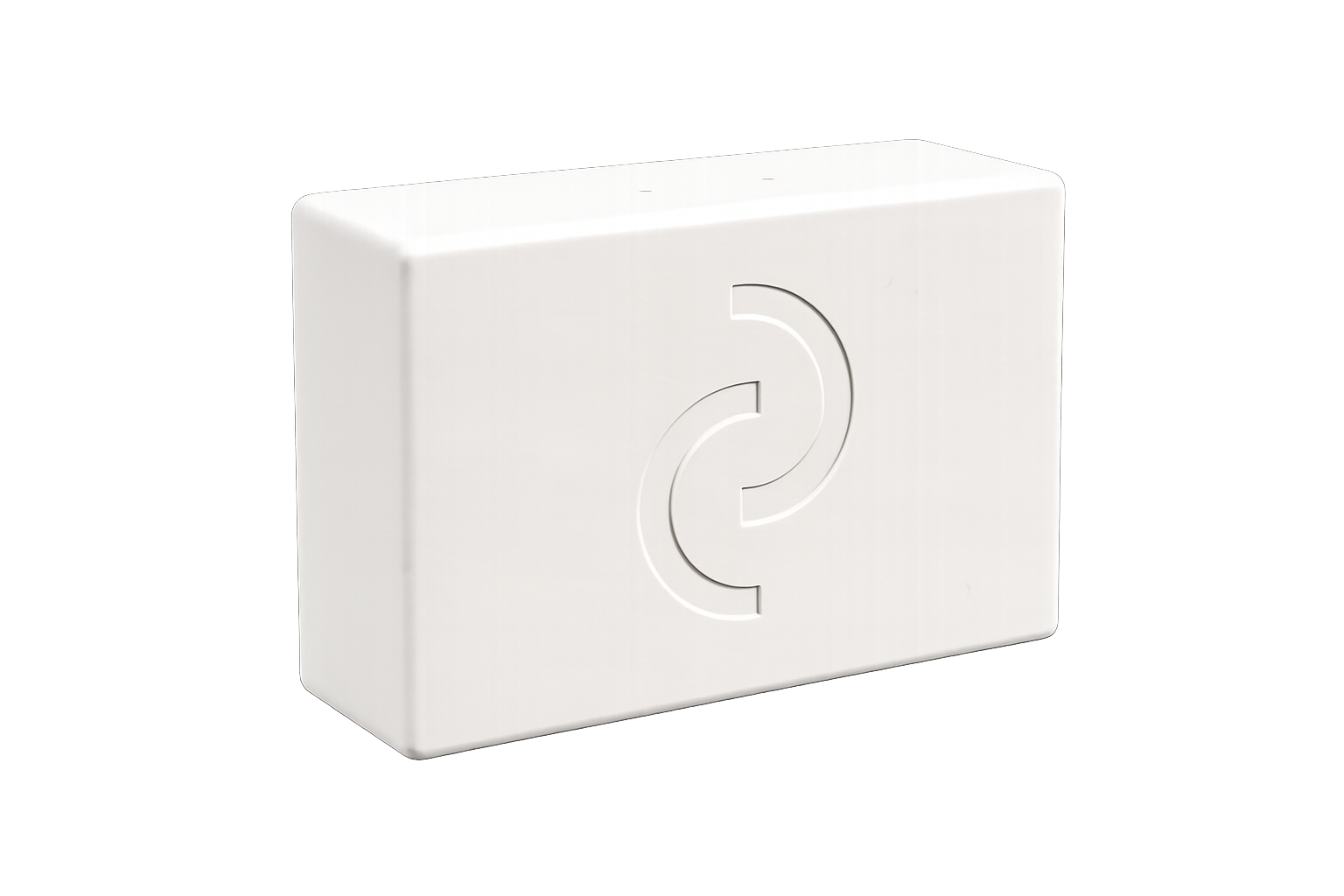

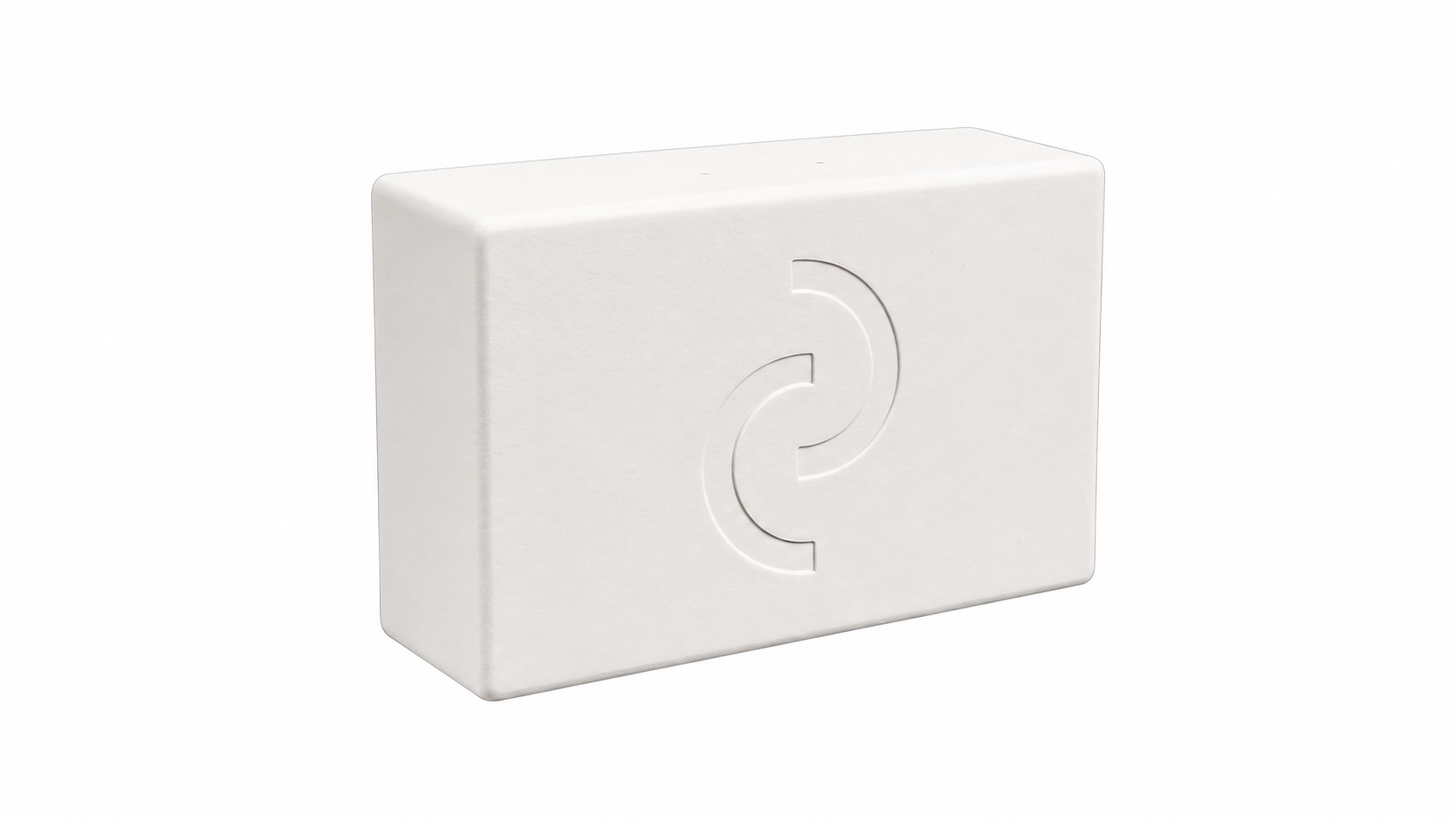

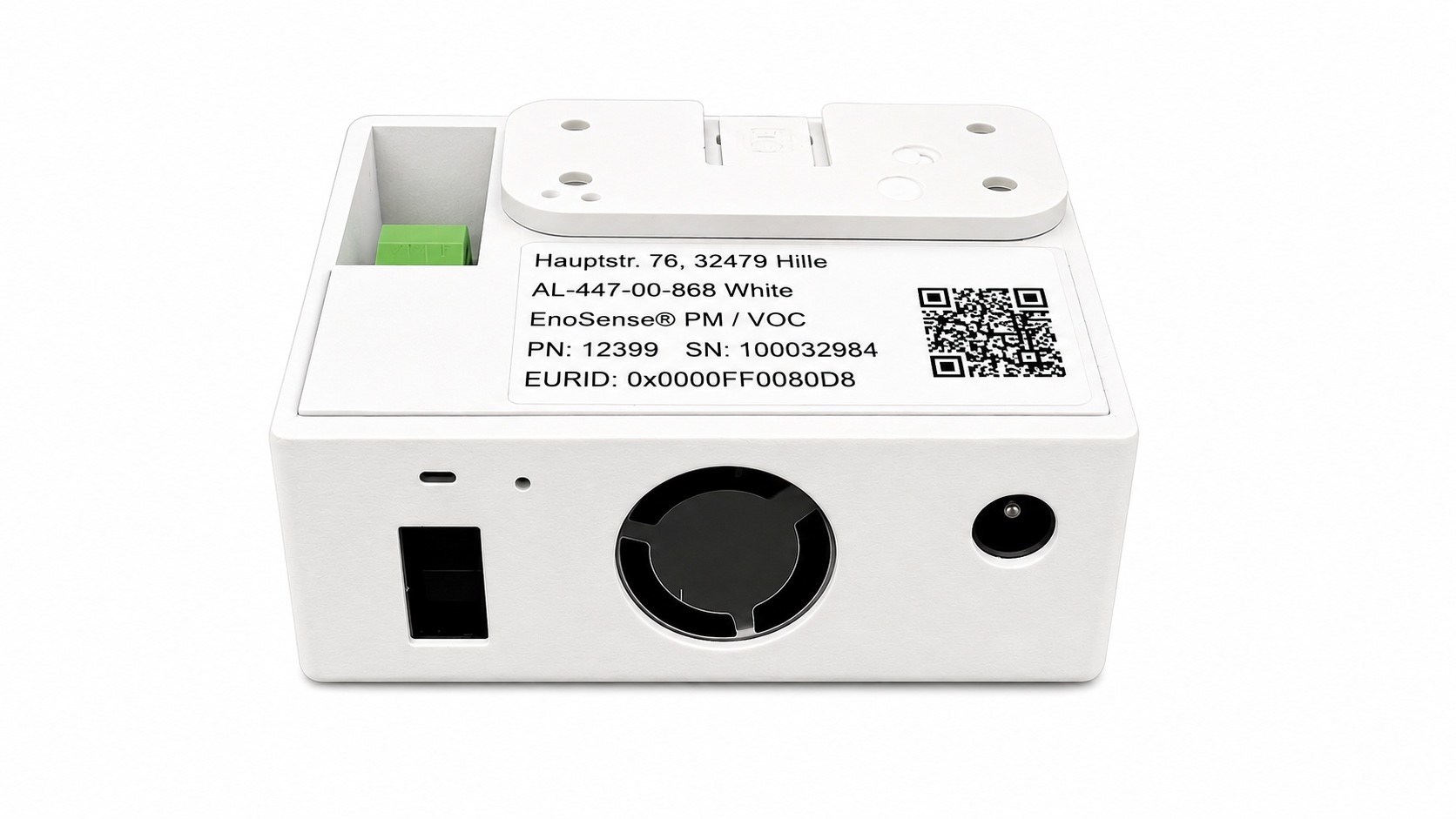

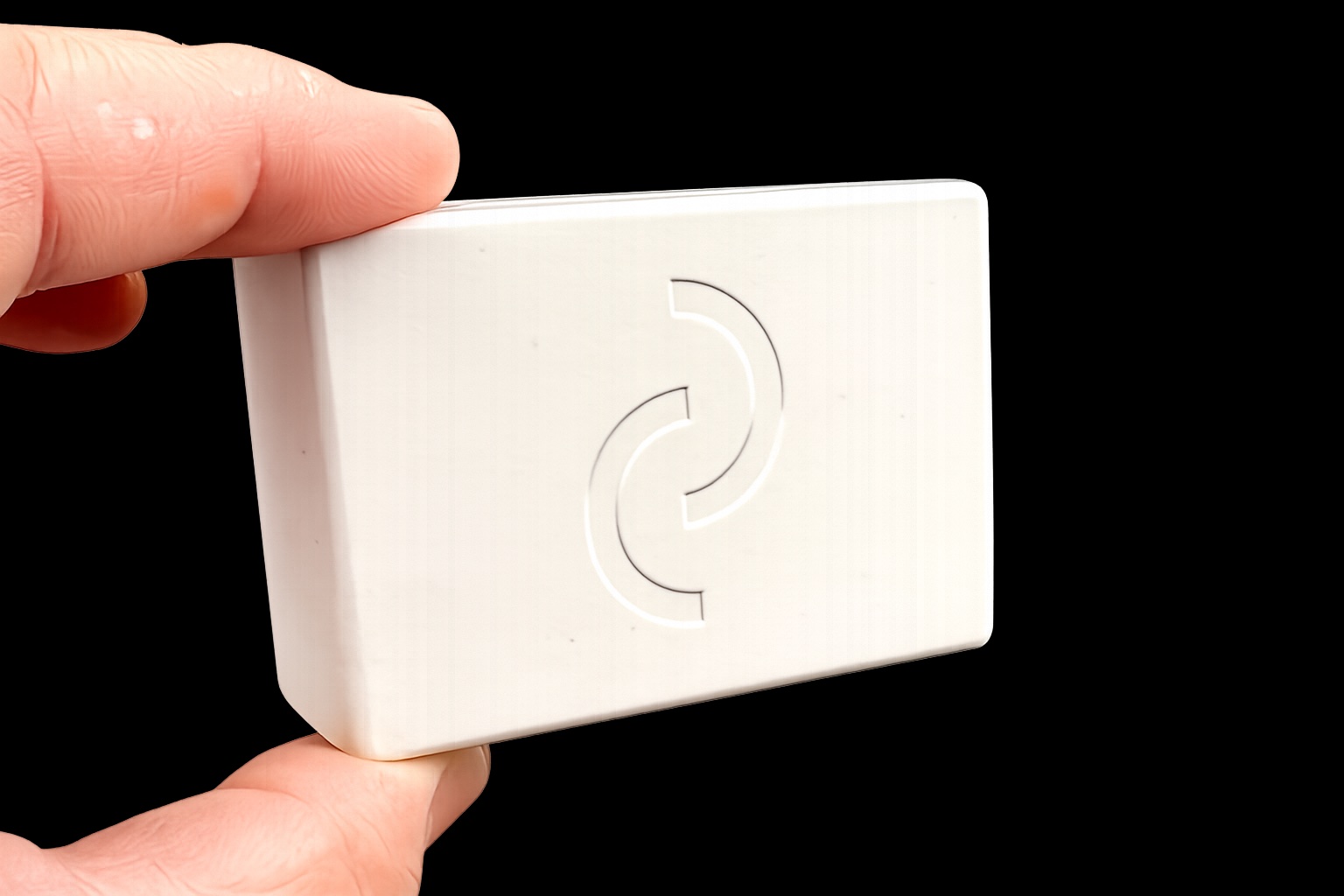

Air quality sensor EnoSense® PM VOC

The EnoSense® PM VOC is a professional air quality sensor for companies, authorities and public buildings and was specially developed for long-term use in occupational health and safety and professional building operations. It continuously measures particulate matter in four fractions (PM1.0, PM2.5, PM4 and PM10), volatile organic compounds (VOC), temperature and humidity – and transmits all measured values wirelessly every 4 minutes via the EnOcean wireless standard. This enables operators to detect air pollution at an early stage and derive suitable measures for occupational safety and building management. In contrast to simple handheld measuring devices, the EnoSense® PM VOC is consistently designed for long-term B2B use – reliable, low-maintenance and can be seamlessly integrated into building management systems.

Continuously monitor indoor air quality

EnoSense® PM/VOC detects particulate matter and volatile organic compounds indoors. The continuous measurement creates transparency about the air quality and provides a reliable data basis for building operation.

PM1.0 / PM2.5
PM1.0 / PM2.5
Measuring range: 0 … 1,000 µg/m³ Accuracy (0-100 µg/m³): ±5 µg/m³ + 5 % of the measured value Accuracy (100-1,000 µg/m³): ±10 % of the measured value Response time: max. 30 s
PM4 / PM10
PM4 / PM10
Measuring range: 0 … 1,000 µg/m³ Accuracy (0-100 µg/m³): ±25 µg/m³ Accuracy (100-1,000 µg/m³): ±25 % of the measured value Response time: max. 30 s
VOC Index
VOC Index
Measuring range: VOC index 1 … 500 Index-based evaluation of the air quality (1 = very good air quality; 500 = heavily polluted indoor air)
Temperature
Temperature
Measuring range: +10 °C to +40 °C Accuracy: typ. ±0.45 °C; max. ±0.7 °C Long-term drift: typ. < 0.02 °C / year
Air humidity
Air humidity
Measuring range: 20 … 80 % r.h. Accuracy: typ. ±4.5 %; max. ±6.0 % Response time: < 20 s
PM
PM
PM 1 PM 2.5 PM 4 PM 10
VOC
VOC
Recognize volatile organic compounds
Building data
Building data
Continuous measured values for monitoring and optimization

Schnittstelle Funk

EnOcean

EU: 868,3 MHz

FCC: 902 MHz

Weitere Schnittstellen

Status LED, grün

Servicetaster

Sensorik

Partikel / PM (1.0 / 2.5 / 4 / 10)

VOC-Index

Rel. Luftfeuchtigkeit

Temperatur

Spannungsversorgung

Externes Stecker-Netzteil, 12 V DC (im Lieferumfang)

Umgebungsbedingungen

Betriebstemperatur: +10 °C .. + 40 °C

Lagertemperatur: +10 °C .. + 40 °C

Luftfeuchtigkeit: 0 .. 99 % (nicht kondensierend)

Schutzklasse: IP20

Abmessungen und Gewicht

72 x 52 x 27 mm

Gewicht: 80 g

Zubehör

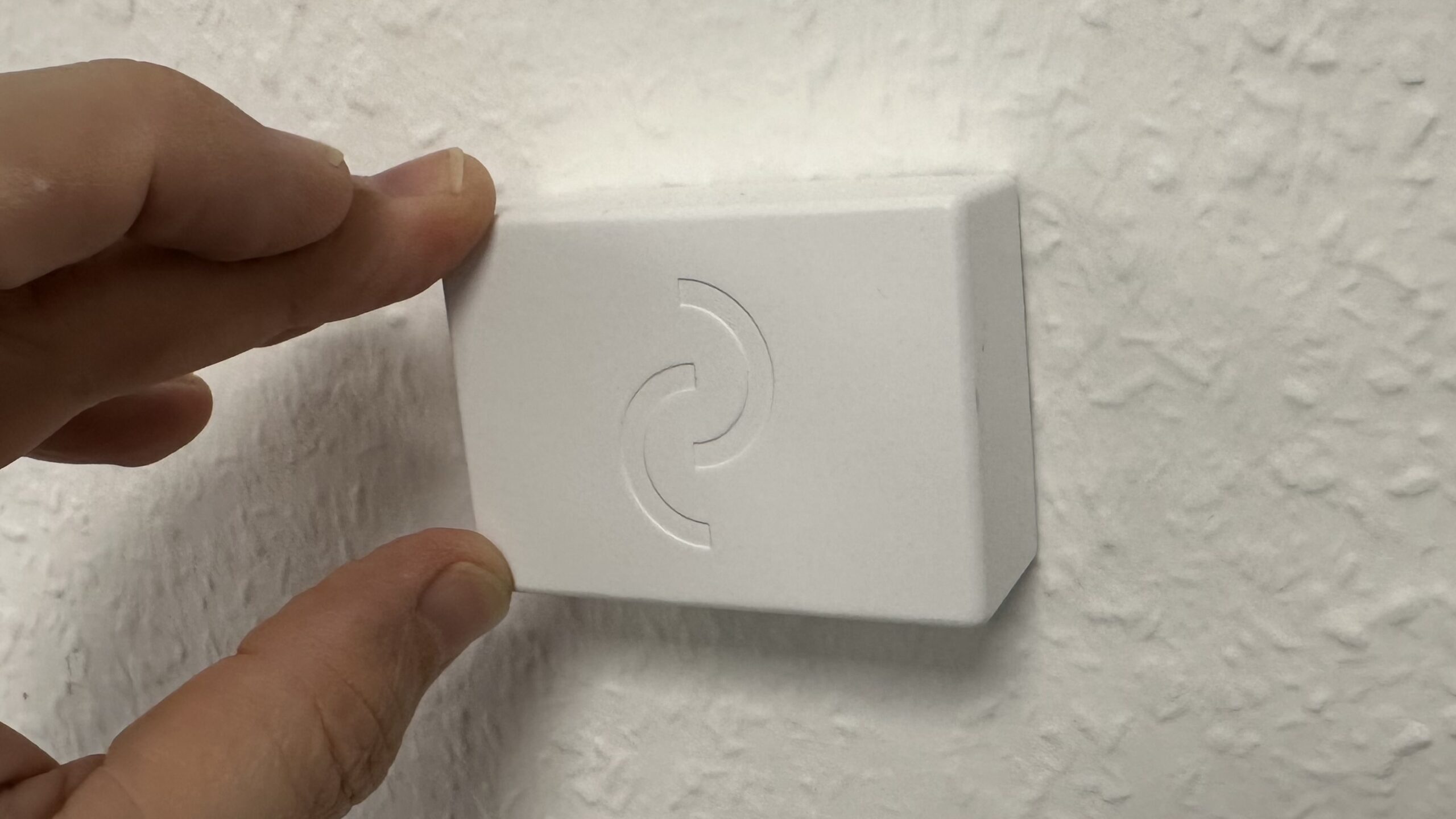

incl. Wandhalter für Wandmontage

The following devices / options are currently available from us:

Bestellnummer

Order number

Artikelbezeichnung

Article name

Zulassung

Approval

12939

AL-447-00-868 EnOcean sensor "EnoSense® PM VOC" / CE

CE

12967

AL-447-00-902 EnOcean sensor "EnoSense® PM VOC" / FCC

FCC
